Speeding up xarray calculations using dask
Author: Ben Silver, Jan 2024 (last updated: Jan 2024)
This notebook demonstrates how to use the dask package to parallelise operations in xarray which (if used correctly and with some luck!) can massively speed up xarray.
For this to work you first need to have installed dask (and xarray, netcdf4, etc.)
This demonstration uses some ERA5 data which happens to be in .grib format but this should work with any data once it is opened using xarray
First import packages, open the dataset, and define a decorator function that can be used to time functions. Note that you do not need to import dask. But we do import dask.diagnostic's useful ProgressBar
import xarray as xr
import pandas as pd
import numpy as np
from dask.diagnostics import ProgressBar
import time
ds = xr.open_dataset('/nfs/a68/eebjs/hardknott/drought/vpd_variables.grib',
engine='cfgrib')
# I got ChatGPT to write me this!
def timer(func):
def wrapper(*args, **kwargs):
start_time = time.time()
result = func(*args, **kwargs)
end_time = time.time()
print(f"Function {func.__name__}",
f"took {round(end_time - start_time)}",
"seconds to execute.")
return result
return wrapper
On a multi-cored machine, dask will speed up xarray operations by performing calculations on multiple cores at the same time. For this to happen, the dataset/dataarray first has to be 'chunked.' For example, if you have a 1000x1000 sized da with dimensions xand y, you could split it into four 500x500 chunks:
da = da.chunk({'x': 2, 'y': 2})
The cpu_count function from the multiprocessing module can check how may cores the machine you are using has:
from multiprocessing import cpu_count
print(cpu_count())
32
The ds we have loaded in has three variables, surface pressure (sp), 2m temperature (t2m) and 2m dew point temperature (d2m). It is about 8Gb
print(ds)
<xarray.Dataset>
Dimensions: (time: 702, latitude: 1501, longitude: 3600)
Coordinates:
number int64 ...
* time (time) datetime64[ns] 1965-01-01 1965-02-01 ... 2023-06-01
step timedelta64[ns] ...
surface float64 ...
* latitude (latitude) float64 75.0 74.9 74.8 74.7 ... -74.8 -74.9 -75.0
* longitude (longitude) float64 -180.0 -179.9 -179.8 ... 179.7 179.8 179.9
valid_time (time) datetime64[ns] ...
Data variables:
d2m (time, latitude, longitude) float32 ...
t2m (time, latitude, longitude) float32 ...
sp (time, latitude, longitude) float32 ...
Attributes:
GRIB_edition: 1
GRIB_centre: ecmf
GRIB_centreDescription: European Centre for Medium-Range Weather Forecasts
GRIB_subCentre: 0
Conventions: CF-1.7
institution: European Centre for Medium-Range Weather Forecasts
history: 2024-03-21T14:46 GRIB to CDM+CF via cfgrib-0.9.1...
These will be used to calculate vapour pressure deficit (vpd). This involves performing several operations using all three variables of the dataset. The calculation is performed using the following function.
def calculate_vpd(ds):
t2m_c = ds['t2m'] - 273.15
d2m_c = ds['d2m'] - 273.15
sp_mb = ds['sp'] / 100
# first calculate saturated vapour pressure
fw = 1 + 7e-4 + 3.46e-6 * sp_mb
svp = 6.112 * fw * np.exp( (17.67 * t2m_c) / (t2m_c + 243.5) )
# then calculate actual vapour pressure
avp = 6.112 * fw * np.exp( (17.67 * d2m_c) / (d2m_c + 243.5) )
# then vapour pressure deficit is:
vpd = svp - avp
return vpd
Without using dask
First to get a baseline, we calculate without chunking (i.e. NOT using dask)
@timer
def calculate_vpd_without_chunking(ds):
vpd = calculate_vpd(ds)
return vpd
vpd = calculate_vpd_without_chunking(ds)
Function calculate_vpd_without_chunking took 334 seconds to execute.
Using dask
When you perform calculations with dask (e.g. ds * 2), the result will not yet be returned. Instead a 'delayed' result will be returned. The result can then either be calculated by calling the .compute() method, or it can be using to perform further operation where it will again return a delayed result. In this way, you can 'queue up` multiple operations and then perform them all at the same time.
When you call .compute(), an 'unchunked' dataset with the operation performed will be returned. If you want to keep the chunks but still return the result, you can instead call .persist()
Now the same thing but using dask:
@timer
def calculate_vpd_with_chunking(ds):
ds = ds.chunk({'time':24})
vpd = calculate_vpd(ds)
with ProgressBar():
vpd = vpd.compute(num_workers=30, scheduler='threads')
return vpd
vpd = calculate_vpd_with_chunking(ds)
[########################################] | 100% Completed | 16.68 s
Function calculate_vpd_with_chunking took 22 seconds to execute.
In this case, the chunked version only took 22 seconds to run, over 15 times quicker than when not using dask.
Which dimensions to chunk?
In the above example, it shouldn't make too much of a difference which dimensions are chunked, because none of the calculations are being performed across dimensions. However, in the next example, we will take the rolling temporal mean, by calculating the annual means for each 36 months during 1965-2023. In this case, it is faster to calculate across dimensions that are not being reduced in the calculation (i.e. lat and lon). This is because it will be more efficient to calculate the mean if the time dimension is not chunked, so one core has all the values it needs to calculate the mean for a latlon gridcell, rather than time being split across cores.
First establish a baseline by performing the calculation without any chunking:
@timer
def calculate_spatial_mean_vpd_without_chunking(vpd):
mean_vpd = vpd.rolling({'time':36}).mean(dim='time')
return mean_vpd
mean_vpd = calculate_spatial_mean_vpd_without_chunking(ds)
Function calculate_spatial_mean_vpd_without_chunking took 283 seconds to execute.
Now chunking across time (the WRONG way)
@timer
def calculate_mean_vpd_chunking_across_time(vpd):
# chunk across time
vpd = vpd.chunk({'time':24})
# compute the mean
with ProgressBar():
mean_vpd = vpd.rolling({'time':36}).mean('time').compute(num_workers=30, scheduler='threads')
return mean_vpd
mean_vpd = calculate_mean_vpd_chunking_across_time(vpd)
[########################################] | 100% Completed | 79.81 s
Function calculate_mean_vpd_chunking_across_time took 105 seconds to execute.
@timer
def calculate_mean_vpd_chunking_across_space(vpd):
# chunk across time
vpd = vpd.chunk({'latitude':300, 'longitude':600})
# compute the mean
with ProgressBar():
mean_vpd = vpd.rolling({'time':36}).mean('time').compute(num_workers=30, scheduler='threads')
return mean_vpd
mean_vpd = calculate_mean_vpd_chunking_across_space(vpd)
[########################################] | 100% Completed | 43.50 ss
Function calculate_mean_vpd_chunking_across_space took 67 seconds to execute.
In this example chunking the 'right' way was only about 1.5x faster than the wrong way, but this could be much more important depending on the shape of your array and types of operations being performed. In any case chunking was faster (3-4x) than doing the sample calculation without using dask. Note that I tried to keep the total number of chunks similar in both examples to make this a fair comparison.
The effect of chunk size
Chunk size is another important thing to get right. It is usually worth playing around with a bit to make sure the size is efficient. Usually I try to chunk the array so the total number of chunks is about the same as the number of cores I am using (i.e. the num_workers argument)
The below code tests a range of chunk sizes in the time take to calculate the mean of vpd
da = vpd[:, :200, :200] # taking a smaller slice of the array so that the calculation is faster
def calculate_mean(da, chunksize):
# time the chunking overhead
start = time.time()
da = da.chunk({'time':chunksize})
end = time.time()
chunking_time = end-start
# time the actual calculation
start = time.time()
_ = da.mean(['latitude', 'longitude']).compute(num_workers=30, scheduler='threads')
end = time.time()
calculation_time = end-start
return pd.Series(
[chunking_time, calculation_time],
index=['chunking time', 'calculation time']
)
results = pd.DataFrame()
for chunksize in [2,4,8,16,32,64,128, 256, 512]:
results[chunksize] = calculate_mean(da, chunksize=chunksize)
results.T.plot.bar(grid=True, xlabel='chunksize', ylabel='time (seconds)',
stacked=True)

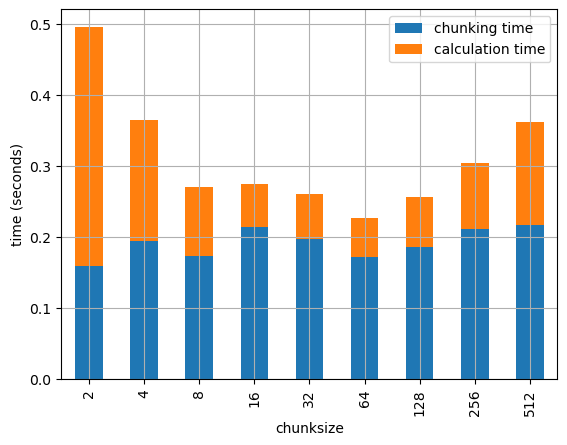

In this case the optimum chunksize seems to be around 64. The chunking time does not seem to vary much, but the calculation time does. Let's try the same thing chunking across lat/lon
da = vpd[:10] # taking a smaller slice of the array so that the calculation is faster
def calculate_mean(da, chunksize):
# time the chunking overhead
start = time.time()
da = da.chunk({'latitude':chunksize, 'longitude':chunksize})
end = time.time()
chunking_time = end-start
# time the actual calculation
start = time.time()
_ = da.mean(['time']).compute(num_workers=30, scheduler='threads')
end = time.time()
calculation_time = end-start
return pd.Series(
[chunking_time, calculation_time],
index=['chunking time', 'calculation time']
)
results = pd.DataFrame()
for chunksize in [20,40,80,160,320,640,1280, 2560]:
results[chunksize] = calculate_mean(da, chunksize=chunksize)
results.T.plot.bar(grid=True, xlabel='chunksize', ylabel='time (seconds)',
stacked=True)

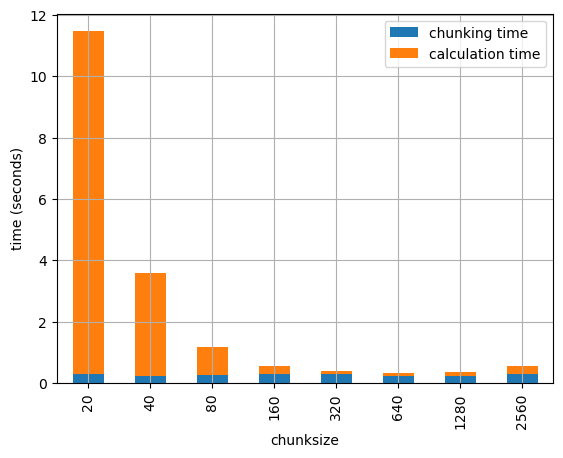

In this case it seems that larger chunks give a much better performance, with 640 being optimum. You can also chunk by setting the total number of chunks or letting dask choose the number of chunks with chunks='auto'
da = vpd[:, :200, :200] # taking a smaller slice of the array so that the calculation is faster
def calculate_mean(da, chunksize):
# time the chunking overhead
start = time.time()
da = da.chunk(chunksize)
end = time.time()
chunking_time = end-start
# time the actual calculation
start = time.time()
_ = da.mean(['latitude', 'longitude']).compute(num_workers=30, scheduler='threads')
end = time.time()
calculation_time = end-start
return pd.Series(
[chunking_time, calculation_time],
index=['chunking time', 'calculation time']
)
results = pd.DataFrame()
for chunksize in ['auto',600, 300,150,75,36,18]:
print(chunksize)
results[chunksize] = calculate_mean(da, chunksize=chunksize)
results.T.plot.bar(grid=True, xlabel='chunksize', ylabel='time (seconds)',
stacked=True)

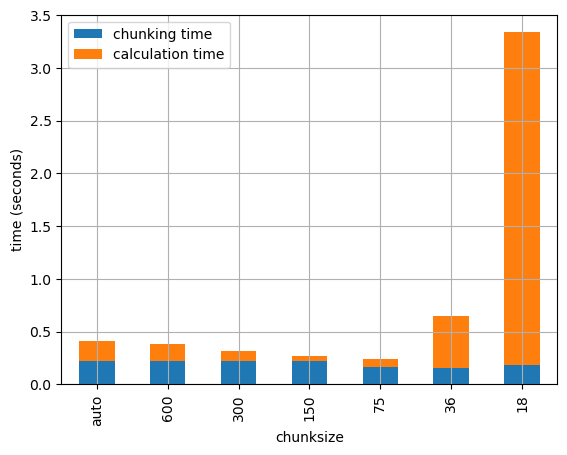

But it looks like 'auto' isn't always the best!
